Introduction

A Note From The Developers

Our goal was to avoid compromising the integrity of Geth and simply extend existing functionality to meet the specific needs of the Shyft Network. To our utmost ability we have documented, within the codebase, exactly where we have extended our functionality using the following notation: NOTE:SHYFT. This document is meant to provide a high level overview of the changes made to Geth and to provide explanations, where needed, on the changes that were made. Another benefit of this document is to allow others to quickly see the changes that were made in order to get quicker feedback on a compromising line of code.

Contributing To Shyft Geth

In order to successfully accept a PR the maintainers of the Shyft repositories require that this document must be updated, reflecting the changes made in the PR. Along with the documentation, we ask that contributors provide the NOTE:SHYFT. The tag could should contain a brief on the modified code. This will help with releases further down the road as we document what breaking changes have been made along the journey.

Setup

Dependencies

go 1.10
postgres 10

To install go please review the installation docs here, but ensure you download version 1.10. If you would like to install go with a script please check out this repo here.

To install postgres please review the installation docs here.

To run postgres locally on Ubuntu/Debian follow the below steps:

Install postgres here
sudo apt update
sudo apt install postgresql

Govendor and Packages/Dependencies

Download Go Vendor

go get -u github.com/kardianos/govendor

To run govendor globally, have this in your bash_profile file:

export GOPATH=$HOME/go
export PATH=$PATH:$HOME/go/bin

Then go_empyrean will need to be cloned to this directory:

$GOPATH/src/github.com/ShyftNetwork/

Geth uses govendor to manage packages/dependencies: Go Vendor

This has some more information: Ethereum Wiki

To add a new dependency, run govendor fetch , and commit the changes to git. Then the deps will be accessible on other machines that pull from git.

Running Locally

To begin running locally, please ensure you have correctly installed go 1.10 and postgres (make sure postgres is running). Once cloned, in a terminal window run the following command:

Before running any CLI options ensure you run make geth in the root directory.

./shyft-geth.sh --start This starts GETH and writes Shyft Network default genesis block and initializes the postgres instance

At this point you should see GETH running in the terminal and if you opened your postgres instance you should see data being populated into the tables. It might look something similiar to the image below.

Geth example

To stop Geth, crtl+C in the terminal window, if you proceed with the start script mentioned above the Shyft chain will begin from the last block height, if you wish to start the chain fresh from genesis follow the below steps:

./shyft-geth.sh --reset This drops chaindb data

./shyft-geth.sh --start Starts GETH

If you wish to run ShyftGeth without a postgres instance please follow the below steps:

cd ./shyft-cli
Open initShyftGeth.sh
Remove --enablepg flag to both the if and else statement, typically in front of the --keystore flag
Open startShyftGeth.sh
Remove --enablepg flag to both the if and else statement, typically after the --ws flag

If you've followed the steps above your initShyftGeth.sh and startShyftGeth.sh should look similiar as below:

#!/bin/sh
 if [ -z "${DBENV}" ]; then
   ./build/bin/geth --identity "ShyftTestnetNode" --keystore ./ --datadir "./shyftData" init ./ShyftNetwork.json
 else
   if [ -d /go/src/ShyftNetwork/go-empyrean/shyftData/geth/chaindata ]; then
     echo "Skipping Genesis Initialization as already completed"
     :
   else
     echo "Initializing Custom Genesis Block"
     /bin/geth --identity "ShyftTestnetNode" --keystore ./ --datadir "./shyftData" init ShyftNetwork.json
   fi
 fi

#!/bin/sh
if [ -z "${DBENV}" ]; then
  ./build/bin/geth --config config.toml --ws --wsaddr="0.0.0.0" --wsorigins "*" --nat=any --mine --minerthreads 4 --targetgaslimit 80000000 --unlock "0x43EC6d0942f7fAeF069F7F63D0384a27f529B062,0x9e602164C5826ebb5A6B68E4AFD9Cd466043dc4A,0x5Bd738164C61FB50eb12E227846CbaeF2dE965Aa,0xC04eE4131895F1d0C294D508AF65D94060AA42BB,0x07D899C4aC0c1725C35C5f816e60273B33a964F7" --password ./unlockPasswords.txt
else
  /bin/geth --config config.toml --gcmode archive --ws --wsaddr="0.0.0.0" --wsorigins "*" --nat=any --mine --minerthreads 4 --targetgaslimit 80000000 --unlock "0x43EC6d0942f7fAeF069F7F63D0384a27f529B062,0x9e602164C5826ebb5A6B68E4AFD9Cd466043dc4A,0x5Bd738164C61FB50eb12E227846CbaeF2dE965Aa,0xC04eE4131895F1d0C294D508AF65D94060AA42BB,0x07D899C4aC0c1725C35C5f816e60273B33a964F7" --password ./unlockPasswords.txt
fi

If you are installing postgresql locally for development on Ubuntu the app assumes that no password is set for the postgresql user and that the development user is provided with superuser privildges - if this is not the case you will need to modify the variable connStrDefault in core/db.go accordingly. Documentation on how to set up a development user are available here

sudo -i -u postgres

creatuser <dev-user> --superuser

To see transactions being submitted on the network see the sendTransactions command in the CLI section of this readme.

Docker Images

Two sets of Docker Images are available for ShyftGeth, the Postgresql Database, and the Shyft Blockchain Explorer, which can be used for local development and testnet connection. The development settings are included in docker-compose.yml, the testnet settings are included in docker-compose.production.yml (shyftgeth not mining by default). To launch these containers you will need to have docker-compose installed on your computer. Installation instructions for docker-compose are available here.

To build the images for the first time please run the following command:

./shyft-geth.sh --setup # clears persisted directories prior to docker build

docker-compose up --build

If you would like to reinitialize/rebuild the docker images you can run the above mentioned command as well.

To launch ShyftGeth, PG, the ShyftBlock Explorer Api and UI anytime after initial build - issue the following commands from the root of the project directory:

./shyft-geth.sh --setup # clears persisted directories prior to docker build

docker-compose up

To stop/pause mining - enter:

docker-compose stop

And then just issue docker-compose up to continue mining.

Docker Postgresql - DB Connection

From your local machine you can view the database by connecting to the database in the container at 127.0.0.1:8001

Use the following credentials:

User: 'postgres'

Password: 'docker'

Database: 'shyftdb'

Docker Block Explorer Api

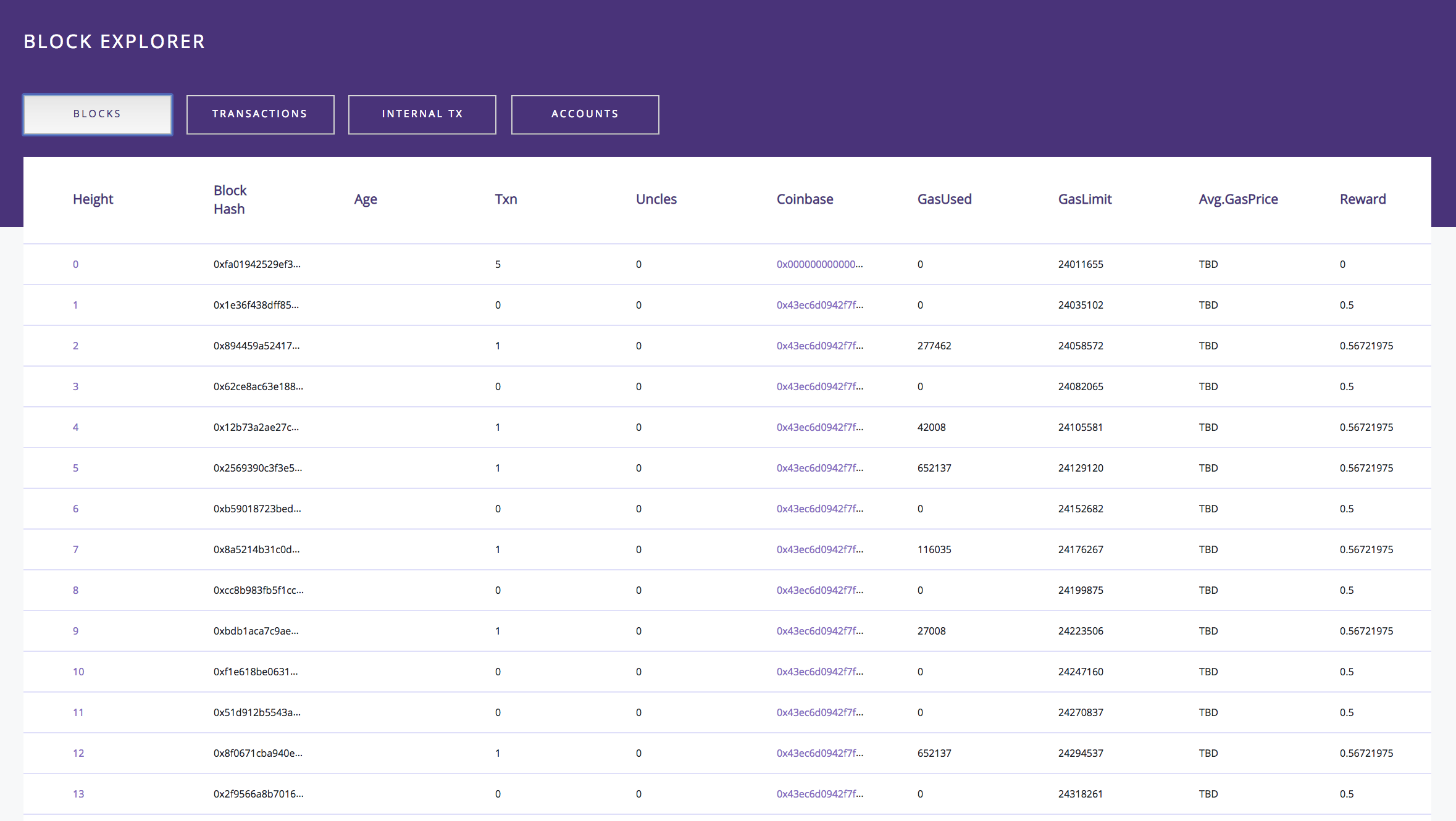

To access the shyftBlockExplorer open a browser and visit

http://localhost:3000

To rebuild any one of the services- issue the following commands:

Services:

go-empyrean_shyftgeth
go-empyrean_pg
go-empyrean_shyft_block_api
go-empyrean_shyft_block_ui

docker-compose up -d --no-deps --build <docker compose file service name>

ie. for shyftBlockExplorerApi:

docker-compose up -d --no-deps --build shyft_block_api

The Postgresql Database Container will persist the database data to the directory ./pg-data _. So if you do want to reinitialize the database you should delete this directory as well as the blockchain data directories (./shyftData ./privatenet) prior to launching the docker containers. There is a shell script available to delete these folders to run it execute the following command:

./shyft-cli/resetShyftGeth.sh

Blockchain data is persisted to ./ethash/.ethash and ./shyftData__. If you would like to reset the test blockchain you will need to delete the __./ethash ./shyftData & ./privatenet__ directories.

The docker container for the ShyftBlockExplorerApi utilizes govendor to minimize its image size. If you would like the docker image for this container to reflect any uncommitted changes which may have occurred in the go-empyrean repository, ie. changes with respect to go-empyrean core (ie. cryptographic functions and database). Prior to launching the docker containers you should rebuild the vendor directory for the shyftBlockExplorerApi - by executing the following steps:

Remove existing shyftBlockExplorerApi vendor.json and vendored components:

rm -rf shyftBlockExplorerApi/vendor

reinitialize vendor.json

cd shyftBlockExplorerApi && govendor init

rebuild vendor.json using latest uncommitted changes

govendor add +external

Due to a bug in govendor and it not being able to pull in some dependencies that are c-header files you should execute the following commands - see these issues - which whilst closed appears to have not been fixed: https://github.com/kardianos/govendor/issues/124 && https://github.com/kardianos/govendor/issues/61

govendor remove github.com/ShyftNetwork/go-empyrean/crypto/secp256k1/^

govendor fetch github.com/ShyftNetwork/go-empyrean/crypto/secp256k1/^

Connecting to the Geth Console from Docker

If you wish to connect to the Geth console while running in docker use the below command:

sudo docker exec -it eedd geth attach http://localhost:8545

Docker Port TroubleShooting

Stop/remove all docker containers that may be using conflicting ports - ports for each of the containers shown in the docker-compose.yml

To see which ports are being used on your machine you can run the below command in your terminals root directory:

netstat -a

Shyft BlockExplorer API

In order to store the block explorer database, a custom folder was created ./shyft_schema that contains the schema for the explorer database.

The main functions exist in ./core/shyft_database_util.go and ./core/shyft_get_utils.go

To run the block explorer rest api that queries the postgres instance and returns a json body, open a new terminal window, navigate to the root directory of the project and run the following command:

go run blockExplorerApi/*.go

This will start a go server on port 8080 and allow you to either run the pre-existing block explorer or query the api endpoints. Its important to note, that if you have nothing in your postgres database the API will return nothing.

Blocks

GET /api/get_block/{blockNumber}

Headers Content-Type: application/json

Description

{
   "Hash":"0x72590ac6e7626b9b1f77452d83297c0361e6ff7fa011872289224ee02b9acc8f",
   "Coinbase":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
   "Age":"2018-10-01T11:15:54Z",
   "ParentHash":"0x5c1aa0559093d9e1e128b6d8ae63d5bf9a5fbf273f704afad9adac88e734c3cc",
   "UncleHash":"0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
   "Difficulty":"135005",
   "Size":"538.00 B",
   "Rewards":"5000000000000000000",
   "Number":63,
   "GasUsed":0,
   "GasLimit":25534458,
   "Nonce":7333650700872754740,
   "TxCount":0,
   "UncleCount":0
}

The above endpoint will respond with the block data for that specific block number. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`blockNumber`	The block height or block number

Attributes	Description	Type
`Hash`	Block hash	string
`Coinbase`	Address of miner	string
`Number`	Block height	number
`GasUsed`	Amount of gas used	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`TxCount`	Amount of transactions included in the block	number
`UncleCount`	Amount of uncle blocks	number
`Age`	Time stamp of block creation	Timestamp
`ParentHash`	Hash of the prior block	string
`UncleHash`	Hash of a the uncle block	string
`Size`	Size of block measured in Bytes	string
`Rewards`	Block reward	string
`Nonce`	Value used for PoW	number
`Difficulty`	The difficulty for this block	string

GET /api/get_all_blocks

Headers Content-Type: application/json

Description

[{
   "Hash":"0x5c1aa0559093d9e1e128b6d8ae63d5bf9a5fbf273f704afad9adac88e734c3cc",
   "Coinbase":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
   "Age":"2018-10-01T11:15:53Z",
   "ParentHash":"0xb0437e25e7cfb113bbea0f014883e8f441d5465bb628f9a112eb372e43055f1a",
   "UncleHash":"0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
   "Difficulty":"134940",
   "Size":"538.00 B",
   "Rewards":"5000000000000000000",
   "Number":62,
   "GasUsed":0,
   "GasLimit":25509548,
   "Nonce":2307164919004664188,
   "TxCount":0,
   "UncleCount":0
},
{
   "Hash":"0x72590ac6e7626b9b1f77452d83297c0361e6ff7fa011872289224ee02b9acc8f",
   "Coinbase":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
   "Age":"2018-10-01T11:15:54Z",
   "ParentHash":"0x5c1aa0559093d9e1e128b6d8ae63d5bf9a5fbf273f704afad9adac88e734c3cc",
   "UncleHash":"0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
   "Difficulty":"135005",
   "Size":"538.00 B",
   "Rewards":"5000000000000000000",
   "Number":63,
   "GasUsed":0,
   "GasLimit":25534458,
   "Nonce":7333650700872754740,
   "TxCount":0,
   "UncleCount":0
}]

The above endpoint will respond with the block data for all blocks in the postgres db. The table below lists the attributes that will be included in the response from this endpoint.

No Parameter requirement

Attributes	Description	Type
`Hash`	Block hash	string
`Coinbase`	Address of miner	string
`Number`	Block height	number
`GasUsed`	Amount of gas used	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`TxCount`	Amount of transactions included in the block	number
`UncleCount`	Amount of uncle blocks	number
`Age`	Time stamp of block creation	Timestamp
`ParentHash`	Hash of the prior block	string
`UncleHash`	Hash of a the uncle block	string
`Size`	Size of block measured in Bytes	string
`Rewards`	Block reward	string
`Nonce`	Value used for PoW	number
`Difficulty`	The difficulty for this block	string

GET /api/get_recent_block

Headers Content-Type: application/json

Description

{
   "Hash":"0x72590ac6e7626b9b1f77452d83297c0361e6ff7fa011872289224ee02b9acc8f",
   "Coinbase":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
   "Age":"2018-10-01T11:15:54Z",
   "ParentHash":"0x5c1aa0559093d9e1e128b6d8ae63d5bf9a5fbf273f704afad9adac88e734c3cc",
   "UncleHash":"0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
   "Difficulty":"135005",
   "Size":"538.00 B",
   "Rewards":"5000000000000000000",
   "Number":63,
   "GasUsed":0,
   "GasLimit":25534458,
   "Nonce":7333650700872754740,
   "TxCount":0,
   "UncleCount":0
}

The above endpoint will respond with the block data from the highest block height. The table below lists the attributes that will be included in the response from this endpoint.

No Parameter requirement

Attributes	Description	Type
`Hash`	Block hash	string
`Coinbase`	Address of miner	string
`Number`	Block height	number
`GasUsed`	Amount of gas used	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`TxCount`	Amount of transactions included in the block	number
`UncleCount`	Amount of uncle blocks	number
`Age`	Time stamp of block creation	Timestamp
`ParentHash`	Hash of the prior block	string
`UncleHash`	Hash of a the uncle block	string
`Size`	Size of block measured in Bytes	string
`Rewards`	Block reward	string
`Nonce`	Value used for PoW	number
`Difficulty`	The difficulty for this block	string

GET /api/get_blocks_mined/{coinbase}

Headers Content-Type: application/json

Description

[{
   "Hash":"0x5c1aa0559093d9e1e128b6d8ae63d5bf9a5fbf273f704afad9adac88e734c3cc",
   "Coinbase":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
   "Age":"2018-10-01T11:15:53Z",
   "ParentHash":"0xb0437e25e7cfb113bbea0f014883e8f441d5465bb628f9a112eb372e43055f1a",
   "UncleHash":"0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
   "Difficulty":"134940",
   "Size":"538.00 B",
   "Rewards":"5000000000000000000",
   "Number":62,
   "GasUsed":0,
   "GasLimit":25509548,
   "Nonce":2307164919004664188,
   "TxCount":0,
   "UncleCount":0
},
{
   "Hash":"0x72590ac6e7626b9b1f77452d83297c0361e6ff7fa011872289224ee02b9acc8f",
   "Coinbase":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
   "Age":"2018-10-01T11:15:54Z",
   "ParentHash":"0x5c1aa0559093d9e1e128b6d8ae63d5bf9a5fbf273f704afad9adac88e734c3cc",
   "UncleHash":"0x1dcc4de8dec75d7aab85b567b6ccd41ad312451b948a7413f0a142fd40d49347",
   "Difficulty":"135005",
   "Size":"538.00 B",
   "Rewards":"5000000000000000000",
   "Number":63,
   "GasUsed":0,
   "GasLimit":25534458,
   "Nonce":7333650700872754740,
   "TxCount":0,
   "UncleCount":0
}]

The above endpoint will respond with the block data for all blocks which have been mined by the provided address. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`coinbase`	The miners address

Attributes	Description	Type
`Hash`	Block hash	string
`Coinbase`	Address of miner	string
`Number`	Block height	number
`GasUsed`	Amount of gas used	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`TxCount`	Amount of transactions included in the block	number
`UncleCount`	Amount of uncle blocks	number
`Age`	Time stamp of block creation	Timestamp
`ParentHash`	Hash of the prior block	string
`UncleHash`	Hash of a the uncle block	string
`Size`	Size of block measured in Bytes	string
`Rewards`	Block reward	string
`Nonce`	Value used for PoW	number
`Difficulty`	The difficulty for this block	string

Transactions

GET /api/get_transaction/{txHash}

Headers Content-Type: application/json

Description

{
   "TxHash":"0x5bd738164c61fb50eb12e227846cbaef2de965aa0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "To":"0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "From":"0x007622d84a234bb8b078230fcf84b67ae9a8acae",
   "BlockHash":"0xfa01942529ef3a4e543ef8c061c6e0cb69a61c489d3bb6891bb65651c02dafd4",
   "BlockNumber":"2",
   "Amount":"400000000000000000000",
   "GasPrice":1253,
   "Gas":12124,
   "GasLimit":24011655,
   "Cost":"53002",
   "Nonce":2,
   "Status":"SUCCESS",
   "IsContract":false,
   "Age":"2018-03-18T19:38:41Z",
   "Data":""
}

The above endpoint will respond with transaction data from the provided transaction hash. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`txHash`	The hash for that particular transaction

Attributes	Description	Type
`TxHash`	Transaction hash	string
`To`	Address of transaction receiver	string
`From`	Address of transaction sender	string
`BlockHash`	Hash of block	string
`BlockNumber`	Block height	string
`Amount`	Amount of value being transferred	string
`GasPrice`	Price of required gas	number
`Gas`	Required pricing value to process transaction	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`Cost`	Hash of a the uncle block	string
`Nonce`	Number of transactions sent from a given address	number
`Status`	Whether the transaction was success or fail	string
`IsContract`	Whether the transaction was from a contract	bool
`Age`	Time stamp of transaction creation	timestamp
`Data`	Contract data in byte code	byteArray

GET /api/get_all_transactions

Headers Content-Type: application/json

Description

[{
   "TxHash":"0x5bd738164c61fb50eb12e227846cbaef2de965aa0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "To":"0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "From":"0x007622d84a234bb8b078230fcf84b67ae9a8acae",
   "BlockHash":"0xfa01942529ef3a4e543ef8c061c6e0cb69a61c489d3bb6891bb65651c02dafd4",
   "BlockNumber":"2",
   "Amount":"400000000000000000000",
   "GasPrice":1253,
   "Gas":12124,
   "GasLimit":24011655,
   "Cost":"53002",
   "Nonce":2,
   "Status":"SUCCESS",
   "IsContract":false,
   "Age":"2018-03-18T19:38:41Z",
   "Data":""
},
{
   "TxHash":"0x2f56g38164c634550eb12e222146cbaef2de965aa0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "To":"0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "From":"0x007622d84a234bb8b078230fcf84b67ae9a8acae",
   "BlockHash":"0xbg01234529ef3a4e543q23061c6e0cb69a61c489d3bb6891bb65651c02dafd4",
   "BlockNumber":"3",
   "Amount":"100000000000000000000",
   "GasPrice":1253,
   "Gas":12124,
   "GasLimit":24011655,
   "Cost":"53002",
   "Nonce":3,
   "Status":"SUCCESS",
   "IsContract":false,
   "Age":"2018-03-18T19:40:41Z",
   "Data":""
}]

The above endpoint will respond with transaction data for all transactions in the postgres database. The table below lists the attributes that will be included in the response from this endpoint.

No parameters required

Attributes	Description	Type
`TxHash`	Transaction hash	string
`To`	Address of transaction receiver	string
`From`	Address of transaction sender	string
`BlockHash`	Hash of block	string
`BlockNumber`	Block height	string
`Amount`	Amount of value being transferred	string
`GasPrice`	Price of required gas	number
`Gas`	Required pricing value to process transaction	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`Cost`	Hash of a the uncle block	string
`Nonce`	Number of transactions sent from a given address	number
`Status`	Whether the transaction was success or fail	string
`IsContract`	Whether the transaction was from a contract	bool
`Age`	Time stamp of transaction creation	timestamp
`Data`	Contract data in byte code	byteArray

GET /api/get_all_transactions_from_block/{blockNumber}

Headers Content-Type: application/json

Description

[{
   "TxHash":"0x5bd738164c61fb50eb12e227846cbaef2de965aa0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "To":"0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "From":"0x007622d84a234bb8b078230fcf84b67ae9a8acae",
   "BlockHash":"0xfa01942529ef3a4e543ef8c061c6e0cb69a61c489d3bb6891bb65651c02dafd4",
   "BlockNumber":"3",
   "Amount":"400000000000000000000",
   "GasPrice":1253,
   "Gas":12124,
   "GasLimit":24011655,
   "Cost":"53002",
   "Nonce":3,
   "Status":"SUCCESS",
   "IsContract":false,
   "Age":"2018-03-18T19:38:41Z",
   "Data":""
},
{
   "TxHash":"0x2f56g38164c634550eb12e222146cbaef2de965aa0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "To":"0x5bd738164c61fb50eb12e227846cbaef2de965aa",
   "From":"0x007622d84a234bb8b078230fcf84b67ae9a8acae",
   "BlockHash":"0xbg01234529ef3a4e543q23061c6e0cb69a61c489d3bb6891bb65651c02dafd4",
   "BlockNumber":"3",
   "Amount":"100000000000000000000",
   "GasPrice":1253,
   "Gas":12124,
   "GasLimit":24011655,
   "Cost":"53002",
   "Nonce":4,
   "Status":"SUCCESS",
   "IsContract":false,
   "Age":"2018-03-18T19:40:41Z",
   "Data":""
}]

The above endpoint will respond with transaction data for all transactions in the postgres database. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`blockNumber`	The block height or block number

Attributes	Description	Type
`TxHash`	Transaction hash	string
`To`	Address of transaction receiver	string
`From`	Address of transaction sender	string
`BlockHash`	Hash of block	string
`BlockNumber`	Block height	string
`Amount`	Amount of value being transferred	string
`GasPrice`	Price of required gas	number
`Gas`	Required pricing value to process transaction	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`Cost`	Hash of a the uncle block	string
`Nonce`	Number of transactions sent from a given address	number
`Status`	Whether the transaction was success or fail	string
`IsContract`	Whether the transaction was from a contract	bool
`Age`	Time stamp of transaction creation	timestamp
`Data`	Contract data in byte code	byteArray

GET /api/get_account_txs/{address}

Headers Content-Type: application/json

Description

[
   {
      "TxHash":"0x7da80aaf6f7e382735310c725b81f790f84c75a541a5360ecba30eb2d7965395",
      "To":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
      "From":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
      "BlockHash":"0x894459a52417bcf3e0eec81fce6cc0858813cbd2202711031e8c5185d9aa4d38",
      "BlockNumber":"2",
      "Amount":"0",
      "GasPrice":100000000000,
      "Gas":6721975,
      "GasLimit":24058572,
      "Cost":"672197500000000000",
      "Nonce":0,
      "Status":"SUCCESS",
      "IsContract":true,
      "Age":"2018-10-02T13:21:02Z",
      "Data":"YIBgQFI0gBVhABBXYAGCY/////8WfAEAAAAAAAAAAAAAAAAAAAAAAAYQVienpyMFS8PtYkAKQ=="
   },
   {
      "TxHash":"0x2f49282ff117dd4d28f4b5a59a71fc0c3ab1cd595f6d503cd82caa88d1cc4897",
      "To":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
      "From":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
      "BlockHash":"0x12b73a2ae27cb32193e8570c275b24d6a9aa9d637c61582e63afe589535f075a",
      "BlockNumber":"4",
      "Amount":"0",
      "GasPrice":100000000000,
      "Gas":6721975,
      "GasLimit":24105581,
      "Cost":"672197500000000000",
      "Nonce":1,
      "Status":"SUCCESS",
      "IsContract":false,
      "Age":"2018-10-02T13:21:05Z",
      "Data":"/azVdgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAB"
   }
]

The above endpoint will respond with transaction data for all transactions conducted by the provided address. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`address`	The address of an account

Attributes	Description	Type
`TxHash`	Transaction hash	string
`To`	Address of transaction receiver	string
`From`	Address of transaction sender	string
`BlockHash`	Hash of block	string
`BlockNumber`	Block height	string
`Amount`	Amount of value being transferred	string
`GasPrice`	Price of required gas	number
`Gas`	Required pricing value to process transaction	number
`GasLimit`	Maximum amount of gas willing to be spent	number
`Cost`	Hash of a the uncle block	string
`Nonce`	Number of transactions sent from a given address	number
`Status`	Whether the transaction was success or fail	string
`IsContract`	Whether the transaction was from a contract	bool
`Age`	Time stamp of transaction creation	timestamp
`Data`	Contract data in byte code	byteArray

GET /api/get_internal_transactions/{hash}

Headers Content-Type: application/json

Description

[
   {
      "ID":1,
      "Hash":"0x2f49282ff117dd4d28f4b5a59a71fc0c3ab1cd595f6d503cd82caa88d1cc4897",
      "BlockHash":"0x12b73a2ae27cb32193e8570c275b24d6a9aa9d637c61582e63afe589535f075a",
      "Action":"CALL",
      "From":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
      "To":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
      "Value":"0",
      "Gas":6700511,
      "GasUsed":20544,
      "Input":"0xfdacd5760000000000000000000000000000000000000000000000000000000000000001",
      "Output":"0x",
      "Time":"6.950856ms"
   }
]

The above endpoint will respond with transaction data from the provided transaction hash. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`hash`	The transaction hash of the particular record

Attributes	Description	Type
`ID`	Incrementing integer for unique db record	number
`Hash`	Transaction hash	string
`BlockHash`	Hash of block	string
`Action`	Contract type, can be Call or Create	string
`To`	Address of transaction receiver	string
`From`	Address of transaction sender	string
`Value`	Amount of value being transferred	string
`Gas`	Required pricing value to process transaction	number
`GasUsed`	Amount of gas used	number
`Input`	Parameters passed into contract in bytecode	string
`Output`	Return values from contract in bytecode	string
`Time`	Amount of time to trace transaction	string

GET /api/get_internal_transactions

Headers Content-Type: application/json

Description

[
   {
      "ID":1,
      "Hash":"0x2f49282ff117dd4d28f4b5a59a71fc0c3ab1cd595f6d503cd82caa88d1cc4897",
      "BlockHash":"0x12b73a2ae27cb32193e8570c275b24d6a9aa9d637c61582e63afe589535f075a",
      "Action":"CALL",
      "From":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
      "To":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
      "Value":"0",
      "Gas":6700511,
      "GasUsed":20544,
      "Input":"0xfdacd5760000000000000000000000000000000000000000000000000000000000000001",
      "Output":"0x",
      "Time":"6.950856ms"
   },
   {
      "ID":2,
      "Hash":"0x16b218a28d48c5ef54cf09ce836e285cb23ba9c179b3c88269d61cb5bd5473db",
      "BlockHash":"0xbdb1aca7c9aeee9f9723ea84cb8d47ff46f49e29a85d41a92b7950a0970b1d25",
      "Action":"CALL",
      "From":"0x43ec6d0942f7faef069f7f63d0384a27f529b062",
      "To":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
      "Value":"0",
      "Gas":6700511,
      "GasUsed":5544,
      "Input":"0xfdacd5760000000000000000000000000000000000000000000000000000000000000002",
      "Output":"0x",
      "Time":"1.370835ms"
   }
]

The above endpoint will respond with all internal transaction data from the postgres database. The table below lists the attributes that will be included in the response from this endpoint.

No parameters requirements

Attributes	Description	Type
`ID`	Incrementing integer for unique db record	number
`Hash`	Transaction hash	string
`BlockHash`	Hash of block	string
`Action`	Contract type, can be Call or Create	string
`To`	Address of transaction receiver	string
`From`	Address of transaction sender	string
`Value`	Amount of value being transferred	string
`Gas`	Required pricing value to process transaction	number
`GasUsed`	Amount of gas used	number
`Input`	Parameters passed into contract in bytecode	string
`Output`	Return values from contract in bytecode	string
`Time`	Amount of time to trace transaction	string

Accounts

GET /api/get_account/{address}

Headers Content-Type: application/json

Description

{
   "Addr":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
   "Balance":"100000000",
   "AccountNonce":"5"
}

The above endpoint will respond with account data from the provided address. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`address`	The address of an account to query

Attributes	Description	Type
`Addr`	Account address	string
`Balance`	Address balance in wei	string
`AccountNonce`	Number of transactions sent from a given address	string

GET /api/get_account/{address}

Headers Content-Type: application/json

Description

{
   "Addr":"0xfaeccae8c1af6bdfd71095e1b6a2f61c61c8a7e7",
   "Balance":"100000000",
   "AccountNonce":"5"
}

The above endpoint will respond with account data from the provided address. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`address`	The address of an account to query

Attributes	Description	Type
`Addr`	Account address	string
`Balance`	Address balance in wei	string
`AccountNonce`	Number of transactions sent from a given address	string

GET /api/get_all_accounts

Headers Content-Type: application/json

Description

[
   {
      "Addr":"0xc04ee4131895f1d0c294d508af65d94060aa42bb",
      "Balance":"500000000000000000000",
      "AccountNonce":"1"
   },
   {
      "Addr":"0x07d899c4ac0c1725c35c5f816e60273b33a964f7",
      "Balance":"100000000000000000000",
      "AccountNonce":"1"
   },
   {
      "Addr":"0x5bd738164c61fb50eb12e227846cbaef2de965aa",
      "Balance":"400000000000000000000",
      "AccountNonce":"1"
   }
]

The above endpoint will respond with account data for all accounts in the postgres database. The table below lists the attributes that will be included in the response from this endpoint.

Parameter	Description
`address`	The address of an account to query

Attributes	Description	Type
`Addr`	Account address	string
`Balance`	Address balance in wei	string
`AccountNonce`	Number of transactions sent from a given address	string

The above endpoints will respond with a json payload for the given request, each of these endpoints are subject to change in the future.

Shyft Block Explorer UI

To demonstrate the ability to create your own block explorer, a custom folder was created ./shyftBlockExplorerUI that contains an example block explorer using react!

To run the Block Explorer UI, ensure that you have the API running as mentioned above. Then run the following command in a terminal:

cd shyftBlockExplorerUI

npm install

npm run start

This will start a development server on port 3000 and spin up an example block explorer that uses the API to query the postgres database.

It should look like the below image.

Block Explorer Example

Command Line Options

Before running any CLI options ensure you run make geth in the root directory.

In the root directory run ./shyft-geth.sh with any of the following flags:

--setup              - Setups postgres and the shyft chain db.
--start              - Starts geth.
--reset              - Drops postgres and chain db, and instantiates both.
--js <web3 filename> - Executes web3 calls with a passed file name.
                       If the file name is sendTransactions.js:
                       ./shyft-geth.sh --js sendTransactions

For convenience a simple CLI was built using shyft-geth.sh as the executable file with some basic commands to get your environment setup.

This will create a new database for geth to use as well as all the necessary tables for the shyft blockexplorer.

Custom Shyft Constants

Block Rewards

./consensus/ethash/consensus.go

Shyft inflation is different than that of Ethereum, therefore the constants were changed in order to support this.

Shyft Extended Functionality

Database Functions

./core/db.go

./shyft_schema

Database instanitation

The local database is instantiated where Geth generates and writes the genesis state/block. ./core/genesis.go

Specifically, the local database configuration and set up takes place in a custom database file ./core/db.go

Writing Blocks

In our case, we use SWriteBlock() for writing all our data. So far, it contains all the data that we need to store to our local block explorer database. It invokes the SWriteTransaction() which writes the transactions and updates accounts in the local database. This may change in the future. This function is invoked in: ./core/blockchain.go

SWriteBlock() and SWriteTransaction() exist within: ./core/shyft_database_util.go

Transaction Types Functions

./core/types/transaction.go

The existing transaction type in Geth did not allow the evm to call a helper function to retrieve the from address, essentially the sender. Therefore, we extended the functionality of the Transaction type to generate the from address through *Transaction.From().

./core/shyft_database_util.go

Errors

This error section is stored in a separate file in includes/_errors.md. Slate allows you to optionally separate out your docs into many files...just save them to the includes folder and add them to the top of your index.md's frontmatter. Files are included in the order listed.

The Shyft Block Explorer API uses the following error codes:

Error Code	Meaning
400	Bad Request -- Your request is invalid.
404	Not Found -- The specified request endpoint could not be found.
406	Not Acceptable -- You requested a format that isn't json.
429	Too Many Requests -- You're requesting too much data! Slow down!
500	Internal Server Error -- We had a problem with our server. Try again later.
503	Service Unavailable -- We're temporarily offline for maintenance. Please try again later.
